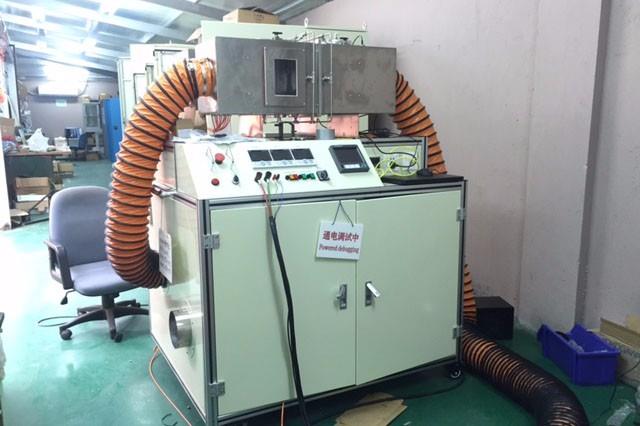

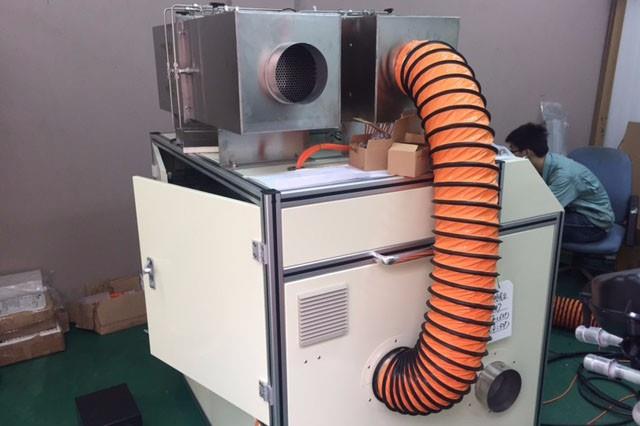

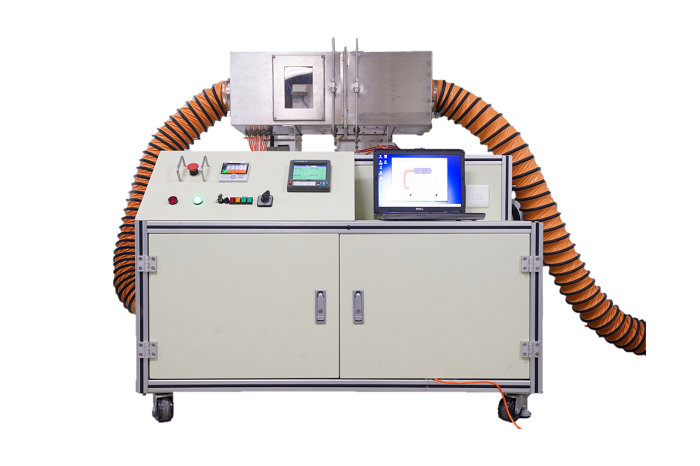

Air Flow Distribution Test Bench
This test device is designed to research the performance of temperature control and the air distribution from each air outlet of automotive HVAC system. In contrast, general HVAC calorimeters only determine the total amount of the airflow and capacity, it is incapable of analyzing the air distribution of each air outlet and the performance of temperature control by the temperature door.
This test device is also designed to determine the leakage of HVAC shells and vehicle compartments.
