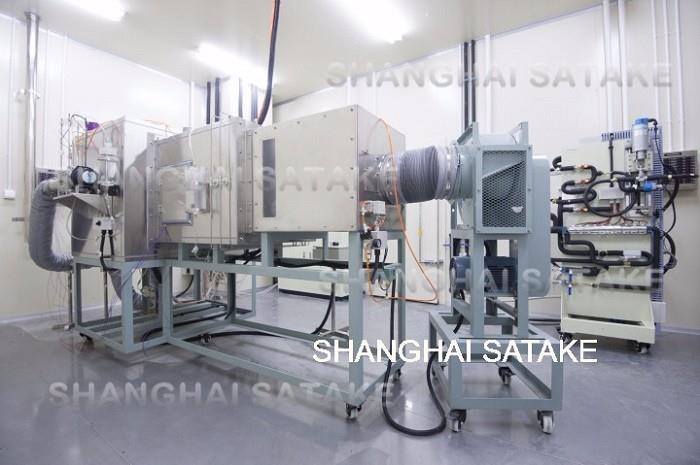

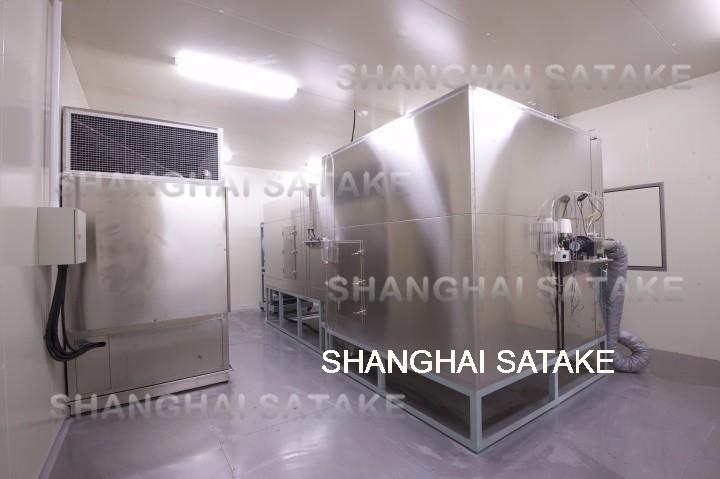

This calorimeter is designed to determine not only the capacity of electric Vehicle A/C system, but also the capacity of compressor, condenser, evaporator, expansion valve, fan, battery heat exchanger, coaxial heat exchanger, economizer, etc. It can determine the control performance of the HVAC system, and the capacity of A/C system with real vehicle pipes as well. It plays an important role in product R&D and quality control. All the related parameters of air side and medium side can be controlled and measured precisely.
The patented technique - the OCR (Oil Circulation Rate) system is applied to measure and control the OCR automatically during the capacity tests of components, which helps to research the influence of the OCR to the performance of A/C system and components.
Many advanced energy-saving techniques and patents are applied to reduce the running cost and improve the accuracy of measurement and control, such as Variable Capacity Refrigeration System, Separate Temperature Measuring and Controlling, Efficient Heating of Refrigerant Gas, and etc..
The calorimeter is modularized with several independent function units, which can be combined flexibly and automatically for different types of tests. Moreover, the calorimeter can run two different tests simultaneously to improve the efficiency and cost-performance.
Both automatic and manual operating modes are available for all tests.
In addition, the test functions for A/C system that is pulley driven or that with new refrigerant (HFO-1234yf or CO2) can be supplied in this calorimeter.
We provide the industry-leading accuracy:
Heat balance: within 2%;
Repeatability: within ±1%.
